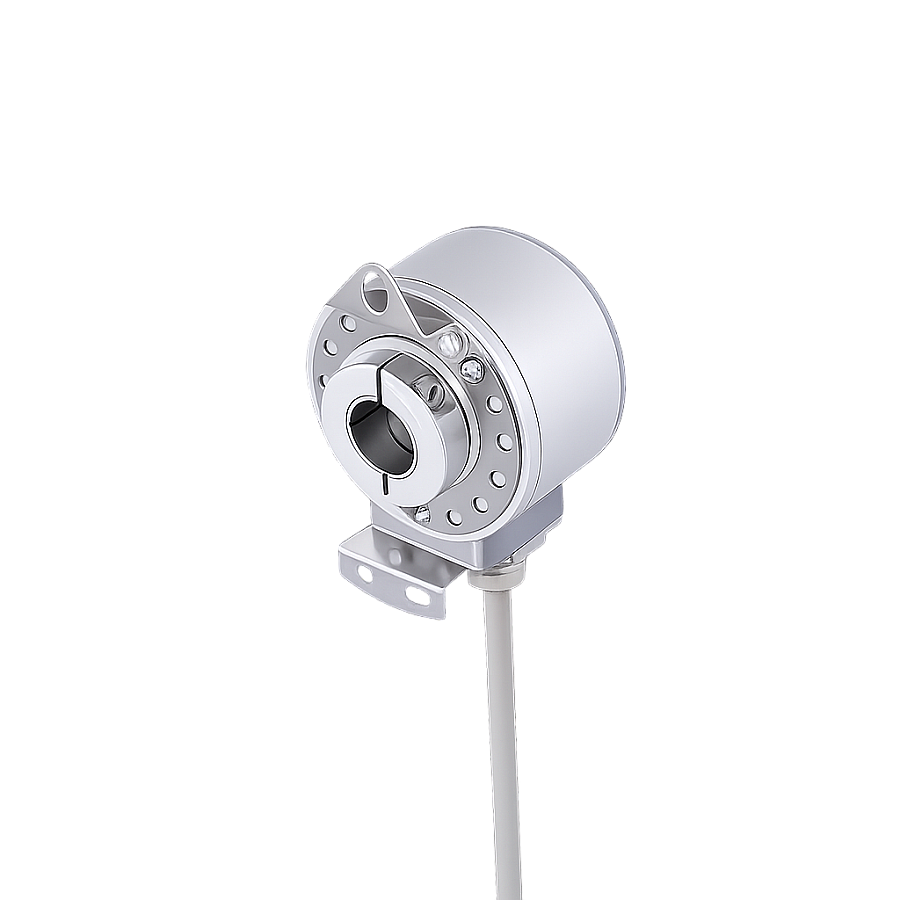

OLV-K50 incremental encoder, optik pozisyon enkoderi Hollow shaft: 14 mm Optik enkoder Line driver çıkış Besleme: 5VDC Çözünürlük: 50–23040 PPR Enkoder

Name: OLV-K50 incremental encoder, optik pozisyon enkoderi Hollow shaft: 14 mm Optik enkoder Line driver çıkış Besleme: 5VDC Çözünürlük: 50–23040 PPR Enkoder
Brand: OLVO
SKU: T3194
Availability: InStock

Ürün Kodu: T3194

Teklif

PaylaşKoleksiyonFiyat Alarmı

Items	Basic parameters
Brand	OLVO
Encoder type	Incremental encoder
External diameter	50mm
Thickness	30mm
Installation dimension	R27.5mm, R30mm, R34.5mm
Hollow shaft type	Blind hole; through hole
Hollow shaft diameter	8mm, 10mm, 12mm; 14mm; 15mm
Resolution	50; 60; 66; 100; 200; 250; 256; 300; 360; 400; 450; 500; 512; 600
	700 ;720; 800; 900; 1000; 1024; 1200; 2000; 2048; 2500; 5000; 8192; 10000; 16384
	8192; 10000; 11520; 16384; 16000;20000; 23040;32000;32768;40000
Output phase	Phase A, B, Z A- B- Z-
Supply voltage	DC5V; DC8-30V
Outlettype	Cable out from side
	Cable out from back
Output mode	NPN/PNP(Open Collector Output)
	Voltage output
	Push-pull output
	Long line drive (26LS31)-TTL
	Compatible RS422
	Long line drive (RT7272)-HTL
Environmental temperature	Operating temperature: -20~+90°
	Storage temperature: -25~+95°
Environmental humanity	Operating and storage: 35~85%RH(non-condensing)
Shell	Die cast aluminium
Consumption current	100mA Max
Shaft Load	Radial: 40N; Axial: 20N
Top REV	4000RPM; IP65≤3000r rpm
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
Mark to Space ratio	45% to 55%
Top Resonse Frequency	300kHz Max
Shell Material	Dia cast aluminium
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
GND	Bot connect to encoder
Shaft Material	Stainless steel
Vibration(endure)	Amplitude 0.75mm,5-55Hz,2 hours for X/Y/Z direction individually
Shock(endure)	490m/s2,11 ms three times for X,Y,Z direction individually
Protection grade	IP50 ; IP65
Cable length	1000mm
Reverse polarity protection	Yes
Short-circuit protection	Yes
package	Carton box
Net weight	About 140g (with package)
Certification	CE
