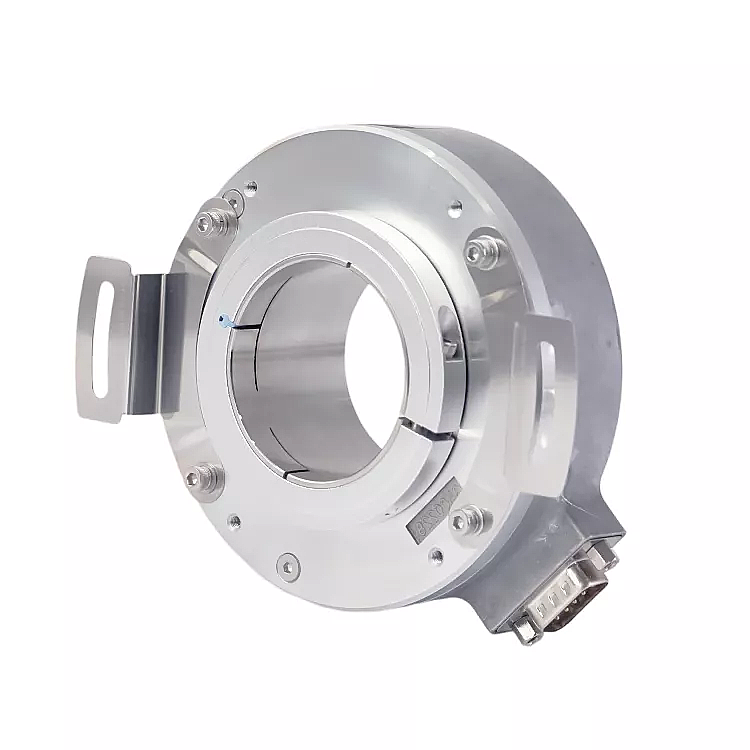

OLV-K100 incremental encoder, yüksek hızlı enkoder 3000–5000 rpm 1000 çözünürlük Dış çap: 100 mm 300 kHz Open collector çıkış 9 pin erkek/dişi soket

Name: OLV-K100 incremental encoder, yüksek hızlı enkoder 3000–5000 rpm 1000 çözünürlük Dış çap: 100 mm 300 kHz Open collector çıkış 9 pin erkek/dişi soket
Brand: OLVO
SKU: T3191
Availability: InStock

Ürün Kodu: T3191

Teklif

PaylaşKoleksiyonFiyat Alarmı

Items	Basic parameters
Brand	OLVO
Encoder type	Incremental encoder
External diameter	100mm
Thickness	38mm
Installation dimension	R50mm(spring plate 100T90)
Hollow shaft type	through hole (clamping ring at prior and clamping ring at rear)
Hollow shaft diameter	30mm,35mm,38mm;40mm;42mm；45mm；
Resolution	100;360;512;1000;1024;1200;2000;2048;2500;2880;3000;3600; 4096; 5000;5760;8192;10000；11520;12000;20000;24000;40000;48000;
	8192/6;8192/8;/8192/10;10000/6;10000/8;10000/10;10000/16;


Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V; DC8-30V
Outlettype	Socket out from side


Output mode	NPN&PNP
	Voltage output
	Push-pull output
	Difference output(TTL,HTL,RS422)
Consumption current	100mA MAX
Top response frenquency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
GND	Not connect to encoder
Mark to Space ratio	45% to 55%
starting torque	less than 98 x 10-3 N.m
Intertia moment	less than 120x 10-6kg.m2
Shaft load	Radial 90N; Axial 60N
Top REV	3000RPM;
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature	Operating:-20 ~ +80°；storage:-25 ~ +85°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm, 5-55Hz, 2 hours for three axis individually
Sock(endure)	1960m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	Dia cast aluminium
Cable length	1000mm(cable with shielding)
Protection grade	IP50; IP65
Cable length	1M(cable length could be added appropriately by Require, but it need payment individually)

Certification	CE
Package	Carton box
Net weight	About 670g (with package)
