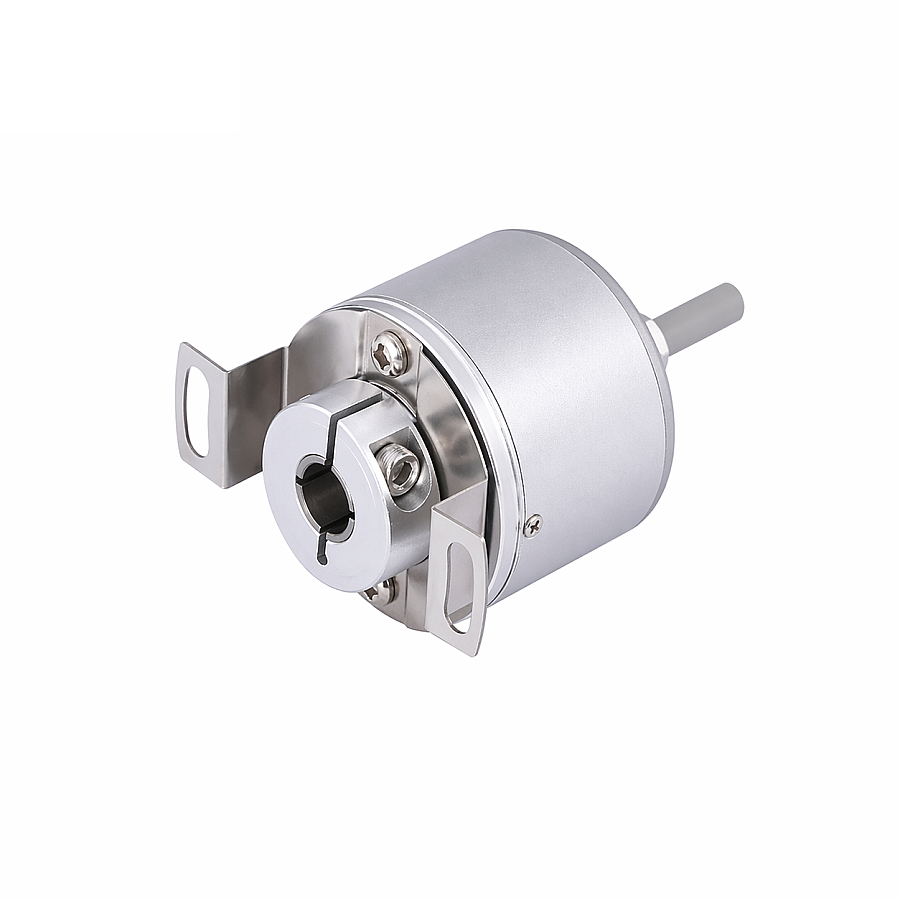

OLV-K38 incremental encoder, aksiyel enkoder Eksenel boşluk (end play): maks. 0,01 mm Çözünürlük: 16.384’e kadar Çıkış: push-pull Besleme: 5–30 V Yüksek hızlı enkoder  Muadil modeller: E6H-CWZ6C, OVW2-15--ZMHT, HES-10-2MD 1500 PPR seçenekleri mevcutt - 1
OLVOOLVO

OLV-K38 incremental encoder, aksiyel enkoder Eksenel boşluk (end play): maks. 0,01 mm Çözünürlük: 16.384’e kadar Çıkış: push-pull Besleme: 5–30 V Yüksek hızlı enkoder Muadil modeller: E6H-CWZ6C, OVW2-15--ZMHT, HES-10-2MD 1500 PPR seçenekleri mevcutt

Ürün Kodu: T3195
Teklif
Favoriye Ekle
Paylaş
Paylaş
KoleksiyonFiyat Alarmı
ItemsBasic parameters
BrandOLVO
Encoder typeIncremental encoder
External diameter38mm
Thickness38mm
Installation dimensionR23.5mm(spring plate 38T45)
Hollow shaft typeBlind hole; through hole
Hollow shaft diameter5mm, 6mm, 6.35mm; 8mm
Resolution50; 60; 66; 100; 200; 250; 256; 300; 360; 400; 450; 500; 512; 600

700; 720; 800; 900; 1000; 1024; 1200; 2000; 2048; 2500; 5000; 8192; 10000; 16384

20000;28800;32000;32768

Output phasePhase A, B, Z A- B- Z-
Supply voltageDC5V; DC8-30V
OutlettypeCable out from side
Cable out from back
Output modeNPN/PNP(Open Collector Output)
Voltage output
Push-pull output
Long line drive (26LS31)-TTL
Compatible RS422
Long line drive(RT7272)-HTL
Environmental temperatureOperating temperature: -20~+90°C
Storage temperature: -25~+95°C
Environmental humanityOperating and storage: 35~85%RH (non-condensing)
ShellDie cast aluminium
Consumption current100mA Max
Shaft LoadRadial: 30N; Axial:20N
Top REV6000RPM; IP65≤4000r rpm
Insulation strengthAC500V    60s
Insulation resistance10MΩ
Mark to Space ratio45% to 55%
Top Resonse Frequency300kHz Max
Shell MaterialDia cast aluminium
Bearing life1.5x109 revs at rated load(100000hrs at 2500RPM)
GNDNot connect to encoder
Shaft MaterialStainless steel
Vibration(endure)Amplitude 0.75mm, 5-55Hz, 2 hours for X/Y/Z direction individually
Shock(endure)490m/s2, 11 ms three times for X, Y, Z direction individually
Protection gradeIP50; IP65
Cable length1000mm
Starting torqueLess than 9.8X10-3 N.m
Intertia momentLess than 6.5x 10-6kg.m2
packageCarton box
Net weightAbout 140g(with package)
Certification CE
