K100

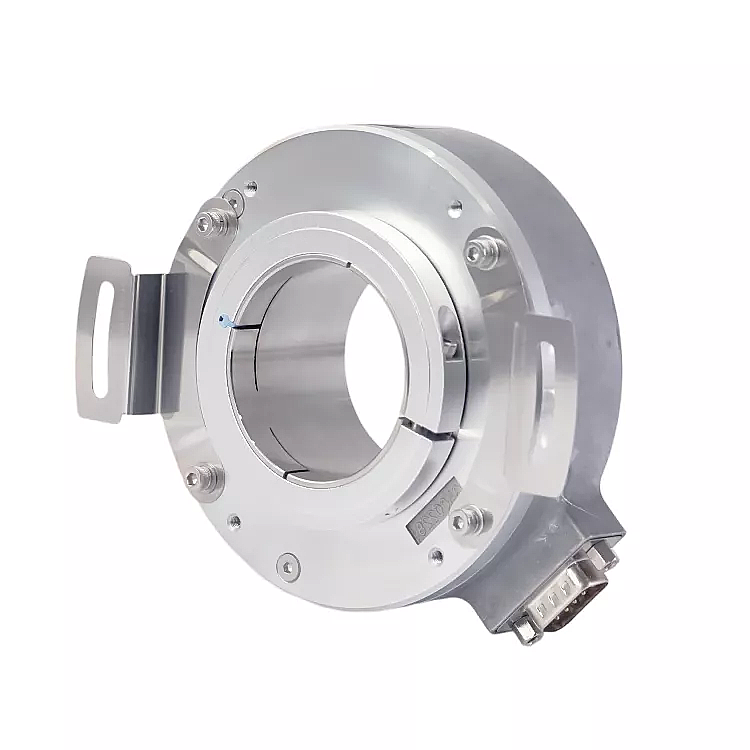

K10 is a large aperture hollow shaft incremental encoder type, it has various shaft diameter to be selected, suitable for all kinds of applications, the special 9-pin connector makes it easier to intall or take down.Besides, the optional spring plates allow to fit into different mounting dimensions.
Features:
sturdy and durable,optional various output mode,
long service life,low price,etc
external diameter φ100mm,thickness 38mm,diameter of shaft up to tφ45mm
Resolution: up to 48000P/R
Supply voltage: DC5V:DC8-30V
Protection:IP50
Cablelength:1000mm
Our advantages
1. The max diameter of 45mm,the hoop locking hollow shaft, which is convenient for locking and has strong bearing capacity.
2. Die-cast aluminum alloy shell, solid and durable, long service life
3. 9-pin socket with cable output, wiring is more simple and convenient
4. Specially used to drive the rotation of the shaft , make it faster and easier to adjust the position of the zero position for encoder
5. igid spring plate, suitable for installation of various sizes, soft connection increases concentricity and reduces angle error
6. High precision up to 48,000 pulses
Items | Basic parameters |
Brand | OLVO |
Encoder type | Incremental encoder |
External diameter | 100mm |
Thickness | 38mm |
Installation dimension | R50mm(spring plate 100T90) |
Hollow shaft type | through hole (clamping ring at prior and clamping ring at rear) |
Hollow shaft diameter | 30mm,35mm,38mm;40mm;42mm；45mm； |
Resolution | 100;360;512;1000;1024;1200;2000;2048;2500;2880;3000;3600; 4096; 5000;5760;8192;10000；11520;12000;20000;24000;40000;48000; |
2048/6;2048/8;2048/10;2500/4;2500/6;2500/8;2500/16; 4096/4;4096/6;4096/8;4096/16;5000/6;5000/8;5000/10;5000/12; |
8192/6;8192/8;/8192/10;10000/6;10000/8;10000/10;10000/16; |
Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
Supply voltage | DC5V ; DC8-30V |
Outlettype | Socket out from side |
Output mode | NPN/PNP(Open Collector Output) |
Voltage output |
Push-pull output |
line drive (26LS31) TTL |
line drive(DC8-30V) HTL |
Consumption current | 100mA MAX |
Top response frenquency | 300KHZ |
Allowable ripple | ≤3%rms |
Load Voltage | ≤DC30V |
GND | not connect to encoder |
Mark to Space ratio | 45% to 55% |
starting torque | less than 98 x 10-3 N.m |
Intertia moment | less than 120x 10-6kg.m2 |
Shaft load | Radial 90N; Axial 60N |
Top REV | 3000RPM |
Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) |
Environmental temperature | Operating:-20 ～+85°；storage:-25 ～+90° |
Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) |
Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually |
Sock(endure) | 1960m/s2 ,11 ms three times for X,Y,Z direction individually |
Shaft Material | Stainless steel |
Shell Material | Dia cast aluminium |
Cable length | 1000mm(cable with shielding) |
Protection grade | IP50 |
Cable length | 1M (cable length could be added appropriately by |
| | require, but it need payment individually) |
Certification | CE |
package | Carton box |
Net weight | About 670g (with package) |
