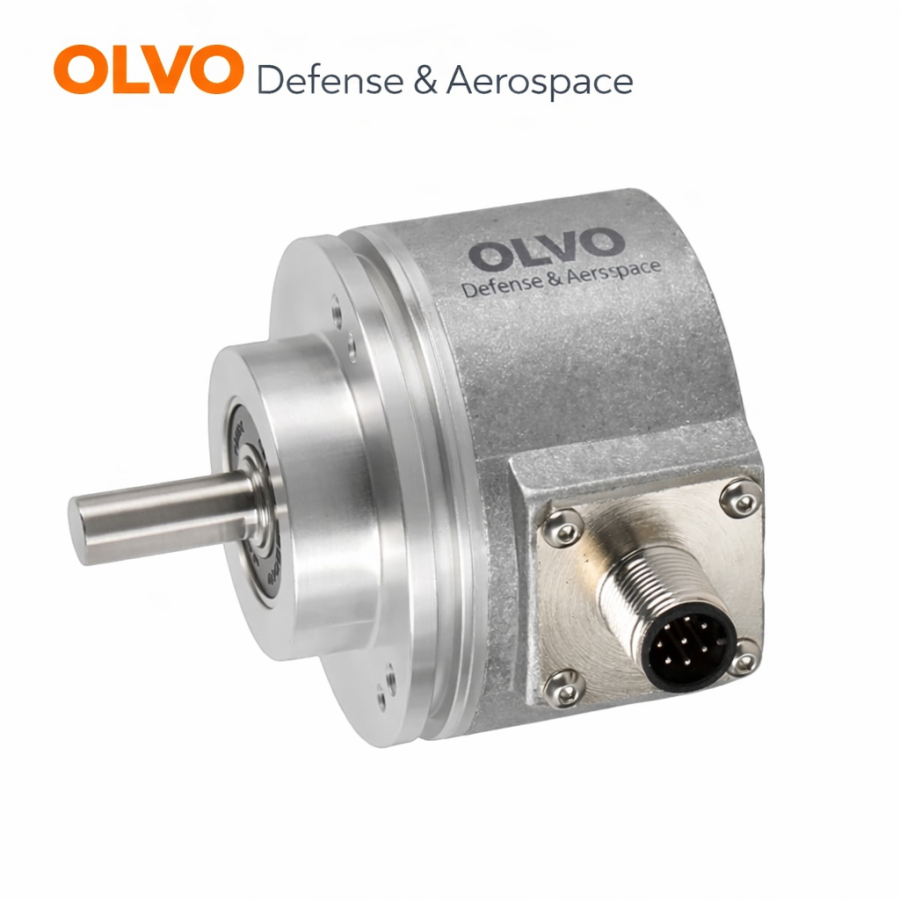

Benzersiz Katı Mil (Solid Shaft) Tek Tur ve Çok Tur Mutlak (Absolute) Enkoder – SM58

Name: Benzersiz Katı Mil (Solid Shaft) Tek Tur ve Çok Tur Mutlak (Absolute) Enkoder – SM58
Brand: OLVO
SKU: T1541
Availability: InStock

Ürün Kodu: T1541

Teklif

PaylaşKoleksiyonFiyat Alarmı

Items	Basic parameters
Brand	OLVO
Encoder type	Absolute encoder
External diameter	58mm
Thickness	36-40mm
Shaft type	solid shaft
Shaft diameter	6mm;8mm;01mm
Bit(steps)	Single-turn 17bits; 19bits; 20bits; 22bits; 24bits;Up to 32bits;
	Multi-turn: 16bits+(17-24bits)
Outlet type	Cable connection; Radial socket;Axial socket
Electrical interface	RS-485
Communication	BISS C Binary/Gray)
Communication	SSI (Binary/Gray)
Protection grade	IP50;IP65
Cable length	1M (cable length could be added appropriately by
Cable length	require, but it need payment individually)
Response speed	Normal action: 6000min-1
RMS position signal noise	±2 @18 Bits/r
Communication clock frequency	≤10 MHz (BiSS) or ≤5 MHz (SSI)
Starting time	Typical value: 13ms
Absolute position sampling priod	≤75 ns
starting torque	less than 9.8x 10-3N.m
Intertia moment	less than 6.5x 10-6kg.m2
Shaft load	Radial 60N; Axial 40N
Allowed speed	≤6000r rpm
Environmental temperature	Operating:-40 ～+95°C；storage:-40 ～+95°C
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Shock(endure)	980m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	Aluminum alloy
Certification	CE
package	Carton box
Net weight	About 420g (with package)
