2-2446038-2

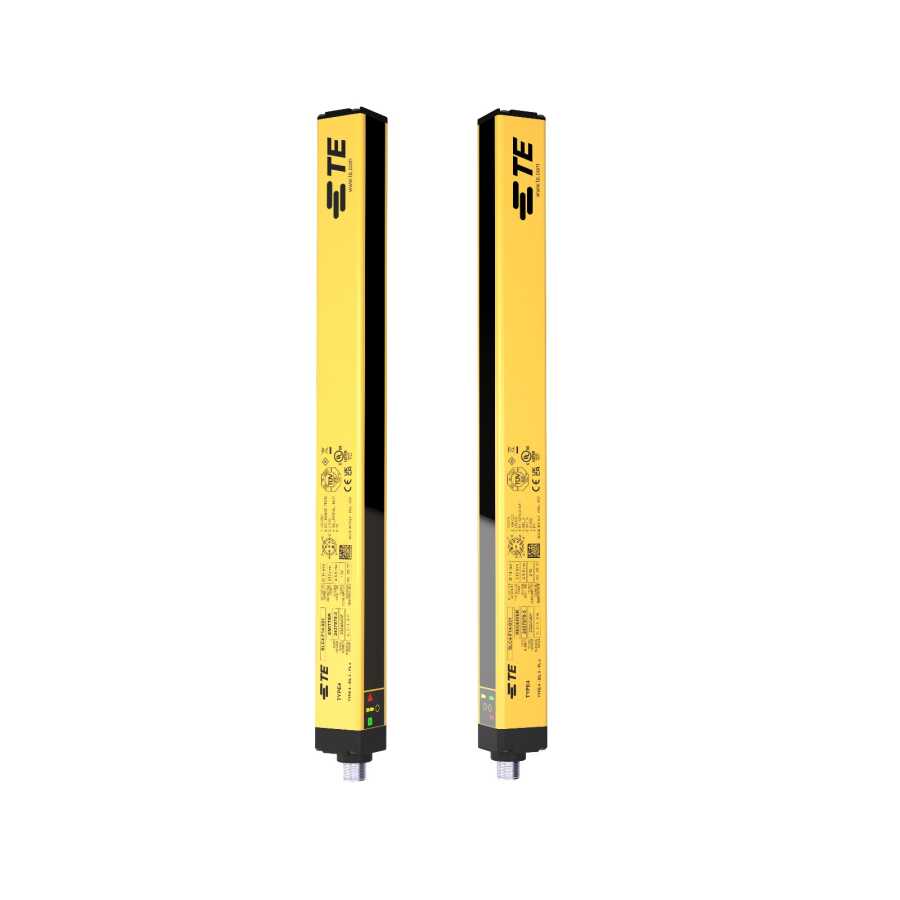

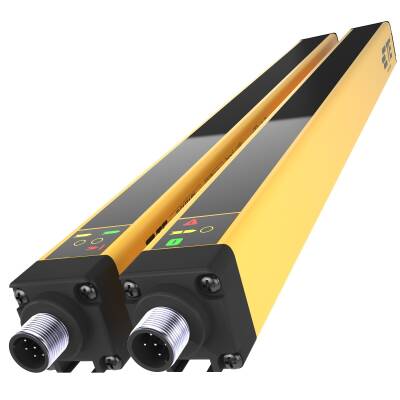

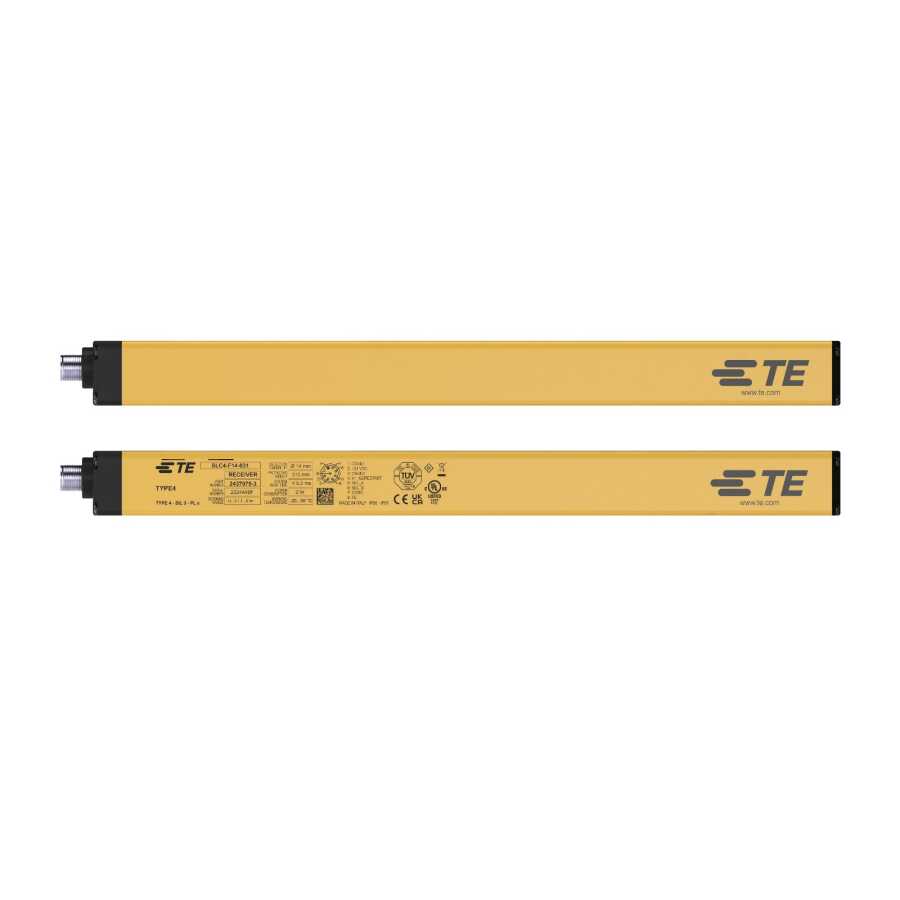

SLC4-H30-226 El Koruma 2260mm
TE Connectivity Güvenlik Işık Perdesi
Configuration Features
-
Safety Functions : Integrated
-
Number of Safety Outputs : 2
-
Connections Type : M12 5-Pole Connector (Emitter) & M12 8-Pole Connector (Receiver)
-
Safety Output Type : 2 OSSD Pairs (400mA)
Electrical Characteristics
-
Output Voltage (VDC): 24
-
Output Current (Max) (A): .4
-
Power Supply Voltage (VDC): 24 ± 20%
Dimensions
-
Product Height (mm): 2313
-
Product Length (mm): 30
-
Product Depth (mm): 28
-
Connection Cable Length (Max) (m): 100
-
Controlled Height (mm): 2260
-
Overall Height (mm): 2313
Usage Conditions
-
Operating Temperature Range : -20 – 55 °C [ -4 – 131 °F ]
-
Detection Resolution (mm): 30
Operation/Application
-
Indicator Type : LED
-
Start & Restart Type : Automatic & Manual
-
Detection Type : Hand
-
Response Time (msec): 26.5
-
Protected Height (mm): 2260
-
Detection & Functioning System : Emitter & Receiver
-
Number of Beams : 113
Industry Standards
-
IP Rating : IP67
-
Safety Level : Type 4 - PL e - Cat.4 , SIL3, SILCL3
