| General Data | |
|---|---|

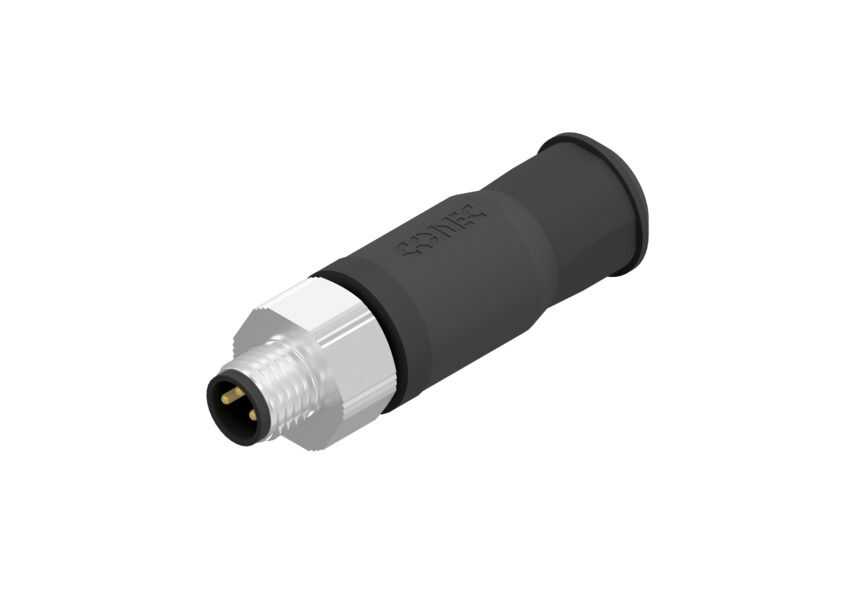

| Style | Field attachable connectors |
| Size A-side | M8x1 |
| Coding | A-coded |
| Size/Number of positions | 3-pos. |
| Contact type | Male connector axial |
| Locking type | Screwable |
| Termination signal [e.g. clamp, crimp, solder, SMT] | Solder cup |
| Product type | Connectors field attachable |
| Technical Data | |
| Shielding | Unshielded |
| Wire cross section | max. 0,5 mm² |
| min. working temperature | -30° C |
| max. working temperature | +80° C |
| Pollution degree | 3/2 |
| Working voltage signal | 50 V AC/ 60 V DC [UL: 60 V AC/DC] |
| IP rating | IP67 |
| Current rating signal | 3 A at +40°C |
| Sealing material | Silikon |
| Mating cycles | >=100 |
| Insulation resistance | >=100M Ohm |
| Certificates | |
| Product UL approved [UL File] | UL-File: E331608 |
| Material Data | |
| Insulator material | PA6 , UL94 |
| Insulator color | Black |
| Coupling nut /-screw material | Zinc die cast |
| Coupling nut /-screw plating | Nickel |
| Signal contact material | Copper alloy |
| Plating signal contact (mating area) | Gold over nickel |
| Specifications | |
| Standard current rating | IEC 61076-2-104 |
| Standard mating cycles | IEC 60512-9a |
| Standard IP rating | IEC 60529 |
| Standard insulation resistance | IEC 60512 |
| Standard pollution degree | IEC 60664-1 |
| Standard rated voltage | IEC 61076-2-104 |
| Standard temperature range | IEC 60664-1 |
